Header options

By default, all columns from the DataTable are imported into the Grid in the order they are declared. Use the header[] option to exclude specific columns and/or change their order. This option can also be used to group headers in a hierarchical structure.

The header[] structure

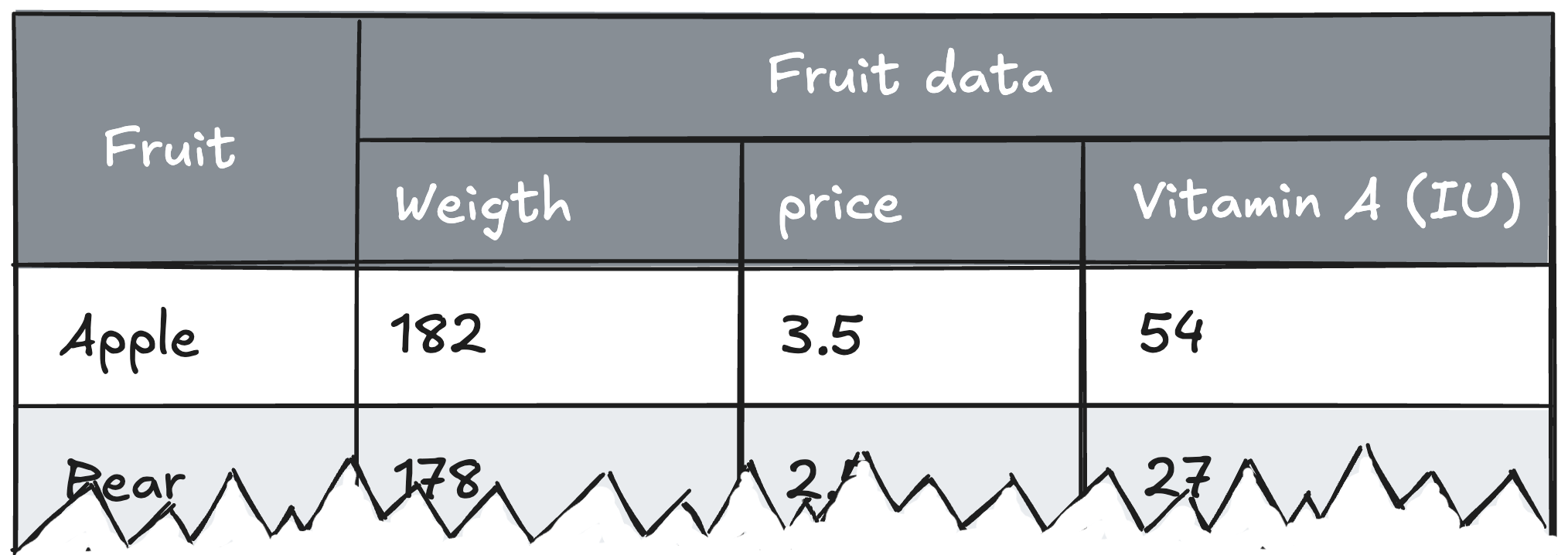

Let’s look at a basic example that produces the illustration above:

{
    dataTable: {
        columns: {
            product: ["Apple", "Pear"],
            weight: [182, 178],
            price: [3.5, 2.5],
            vitamin_a: [54,27],
            in_stock: [true, false]
        }
    },
    header: [
        {
            columnId: "product",
            format: "Fruit"
        },
        {
            format: "Fruit data",
            accessibility: {
                description: "Header spanning three sub-headers"
            },
            columns: [
                "weight",
                "price",
                {
                    columnId: "vitamin_a",
                    format: "Vitamin A (IU)"
                }
            ]
        }
    ],
    columns: [
        {
            id: "weight",
            header: {
                format: "Weight"
            }
        }
    ]
}

The header[] and header[].columns[] option arrays can be a mix of strings and objects. The string variant is a shortcut reference to the key in the DataTable. If you, for instance, need to modify the header cell format, use the object variant with columned as the reference.

Walkthrough of some important elements:

1. Renaming a header cell: The first item in the header[] array renames the header cell to “Fruit” instead of the default “products” from the DataTable.
2. Creating a new header group: The second item doesn’t have a columnId reference, so a new header cell called “Fruit data” is rendered. An aria-description attribute is added for improved accessibility .
3. Defining grouped columns: In header[].columns[], we define which columns are rendered below the “Fruit data” header cell. These will then be grouped headers.
4. Inherit column configuration: “weight” and “price” are string variants of the reference to the key in DataTable. However, since “weight” is also referenced from the root columns[] option array, the configuration takes precedence over the default key from the DataTable.
5. Exluding columns: The “in_stock” column from the DataTable is not referenced in header[], so it is not rendered. This means that header[] can exclude columns from the original DataTable.

You can group headers however deep you want by nesting the columns[] option array.

Advanced example

This example shows deeper nesting of columns[]:

Summary

Using the header[] option gives you full control over which columns are displayed, their order, and how they are grouped and formatted in the Grid.

With the exception of header grouping and order, you can also use the root columns[] option to, say, change header cell format and exclude columns. The best approach depends on your specific use case.

Learn more about columns[] in our Columns article .
