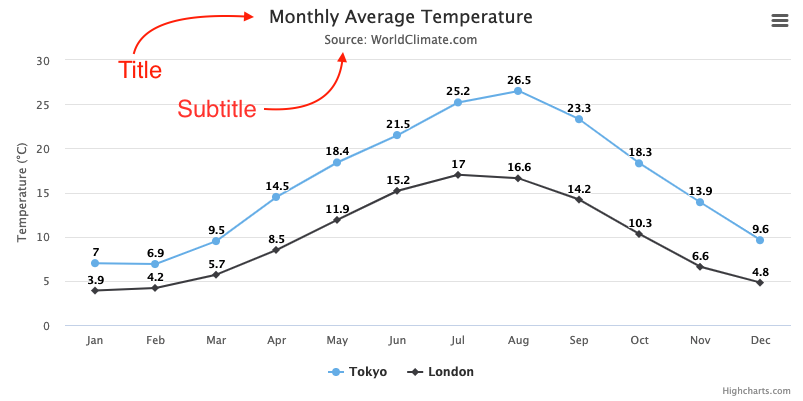

Title and subtitle

The title is by default displayed at the top of the chart, and an optional subtitle can be shown beneath it.

The title and subtitle can be set as shown in the example below.

title: {
    text: 'My custom title'
},
subtitle: {
    text: 'My custom subtitle'
}

By default, since version 12, the title and subtitle have adaptive alignment to best fit the length of the text and the width of the chart. The following rules apply:

• The title is aligned to the center for short text.
• If the title is about to overflow, it is scaled down to fit, until the limit set in the title.minScale option. It defaults to 0.67, which is the scale when the title has the same font size as the subtitle.
• If the title still doesn’t fit after scaling down, it is wrapped into multiple lines. Now the text is left-aligned for a cleaner look.
• The subtitle by default (and dynamically) applies the same alignment as the main title.

All of these rules can be overridden by explicitly setting the title or subtitle align property, or setting the title.minScale, for example to 1 to disallow scaling down.

The title and subtitle can also be moved around by the default attributes of the title and subtitle options (align, float, margin, verticalAlign, x, y). For all available options, see options.title  and options.subtitle .

Titles can be modified dynamically after render time by the Chart.setTitle  method.
